Sewing Thread Finish Winding Machines

The Thread King III sewing-thread finish-winding machines offer the highest productivity with the shortest doffing cycle and most precise length measurement on the market. The unique, automatic slit-drum drum opening allows quick, one-handed threading of the yarn and simplifies cleaning and maintenance of the machine.


Thread King III KT

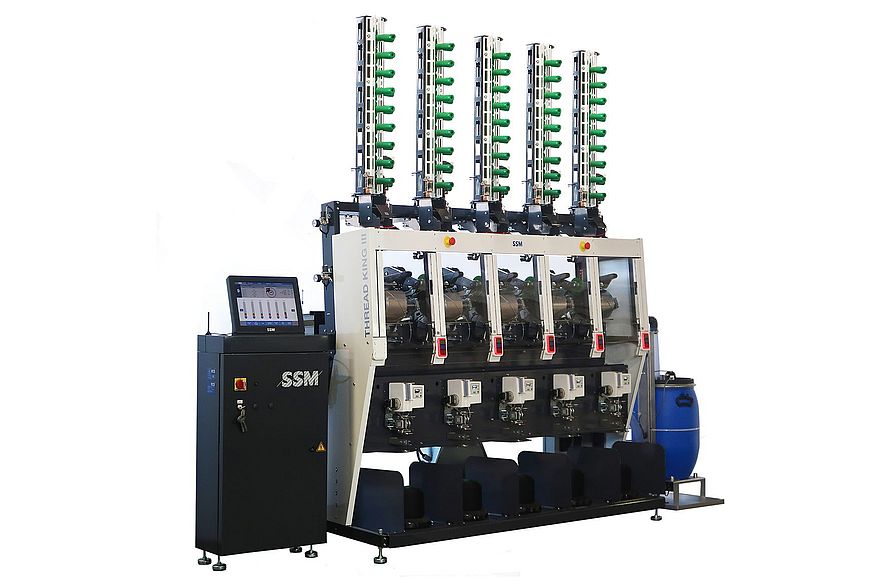

Thread King III KT automatic finish winder

Designed for king spools, the Thread King III KT has no equal when it comes to efficiency. The machine offers a shorter production cycle per bobbin and features an improved length accuracy, resulting in higher profitability and up to 50% safety margin reduction on wound packages. Perfect unwinding performance rounds off the picture.

Technical data

THREAD KING III KT Automatic high-performance finish winder
Type of windingprecision crosswind
Mechanical speedup to 2 500 m/min (up to 15 000 min-1)
Driveindividual double drive system per spindle
Thread layingslit drum
Package shapekingspools
Traverse length1.5" – 6"
Yarnsfilament twisted/flat, textured filament, natural silk, viscose/rayon, technical thread, special thread
Yarn countup to 3 300 dtex with doffer
up to 5 000 dtex without doffer
Number of spindles min./max. with automatic slit-drum opening5/50

Thread King III CT

Thread King III CT automatic finish winder

Designed for cones, the Thread King III CT has no equal when it comes to efficiency. With speeds up to 15 000 rpm, the machine offers the shortest production cycle and doffing cycle as well as an improved length measurement accuracy, resulting in higher profitability and up to 50% safety margin reduction on wound packages.

Technical data

Thread King III CT automatic finish winder
Type of windingprecision crosswind
Mechanical speedup to 2 500 m/min (up to 15 000 min-1)
Driveindividual double drive system per spindle
Thread layingslit drum
Package shapecones
Traverse length3" – 6"
Yarnsspun thread/core spun, textured filament, technical thread, special thread
Yarn countup to 3 300 dtex with doffer
up to 5 000 dtex without doffer
Number of spindles min./max. with automatic slit-drum opening5/50

Thread King III TT

Designed for cylindrical tubes {cops), the Thread King III TT. has no equal when it comes to efficiency. With speeds up to 15 000 rpm, the machine offers the shortest production cycle and doffing cycle as well as an improved length measurement accuracy, resulting in higher profitability and up to 50% safety margin reduction on wound packages.

Technical data

Thread King III TT automatic finish winder
Type of windingprecision crosswind
Mechanical speedup to 2 500 m/min (up to 15 000 min-1)
Driveindividual double drive system per spindle
Thread layingslit drum
Package shapecylindrical tubes (cops)
Traverse length1.5" – 4"
Yarnsspun thread/core spun, filament twisted/flat, textured filament, natural silk, viscose/rayon, technical thread, special thread
Yarn countup to 3 300 dtex
Number of spindles min./max. with automatic slit-drum opening5/50

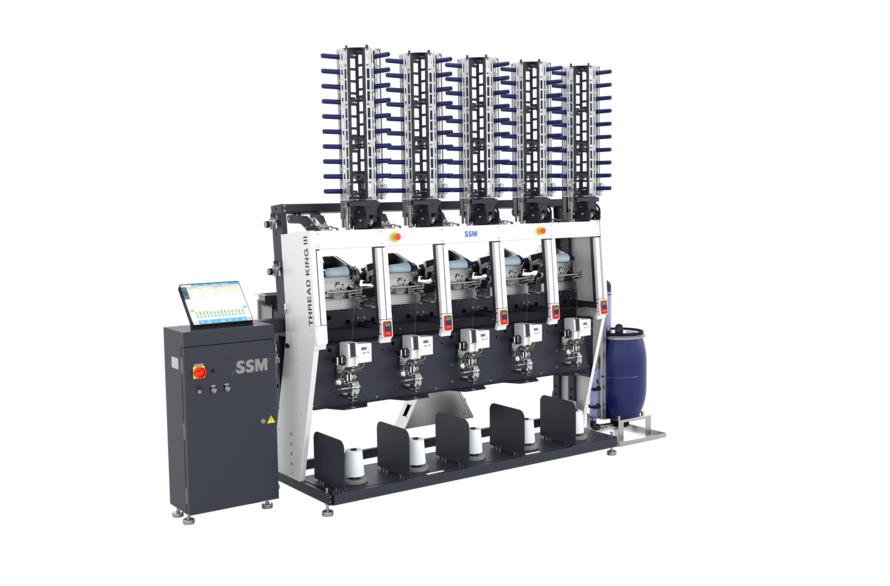

Thread King III KTE

The Thread King III KTE delivers unmatched flexibility for bonded sewing threads. Its fastflex electronic laying system allows rapid adjustments to traverse length, spool size, and crossing ratio. With the shortest doffing cycle, built-in tail tuck-in, and improved length accuracy that reduces safety margins by up to 50%, it ensures maximum efficiency with minimal downtime.

Technical data

THREAD KING III KTE AUTOMATIC finish winder
Type of windingprecision crosswind
Mechanical speedup to 1 500 m/min
Driveindividual double drive system per spindle
Thread layingfastflex electronic thread laying system
Package shapekingspools
q winding standard configuration
p winding optional configuration
Traverse length2" – 6"
Yarnsbonded filaments thread, technical thread, special thread, texturing filament yarn, twisted/flat filament thread
Yarn countup to 3 300 dtex
Number of spindles min./max.5/50

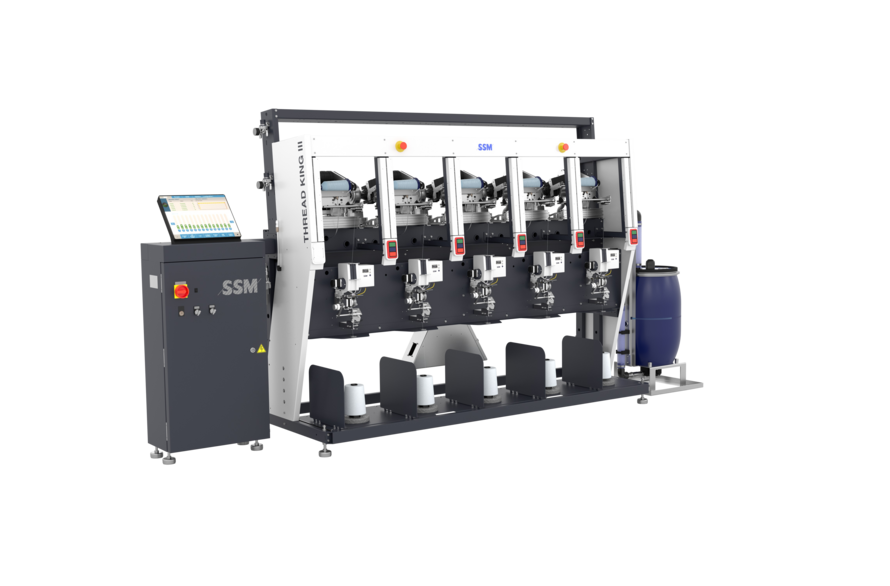

Thread King III KE

The Thread King III KE is designed to adapt seamlessly to changing production demands. Its advanced fastflex electronic thread laying system allows quick, easy adjustments to traverse length, spool size, and crossing ratio. Enhanced length accuracy enables a reduction in safety margins by up to 50%, making it the ideal winding solution for bonded sewing threads.

Technical data

THREAD KING III KE MANUAL finish winder
Type of windingprecision crosswind
Mechanical speedup to 1 500 m/min
Driveindividual double drive system per spindle
Thread layingfastflex electronic thread laying system
Package shapekingspools
q winding standard configuration
p winding optional configuration
Traverse length2" – 6"
Yarnsbonded filaments thread, technical thread, special thread, texturing filament yarn, twisted/flat filament thread
Yarn countup to 5 000 dtex
Number of spindles min./max.5/50
