Parallel Winding Machines

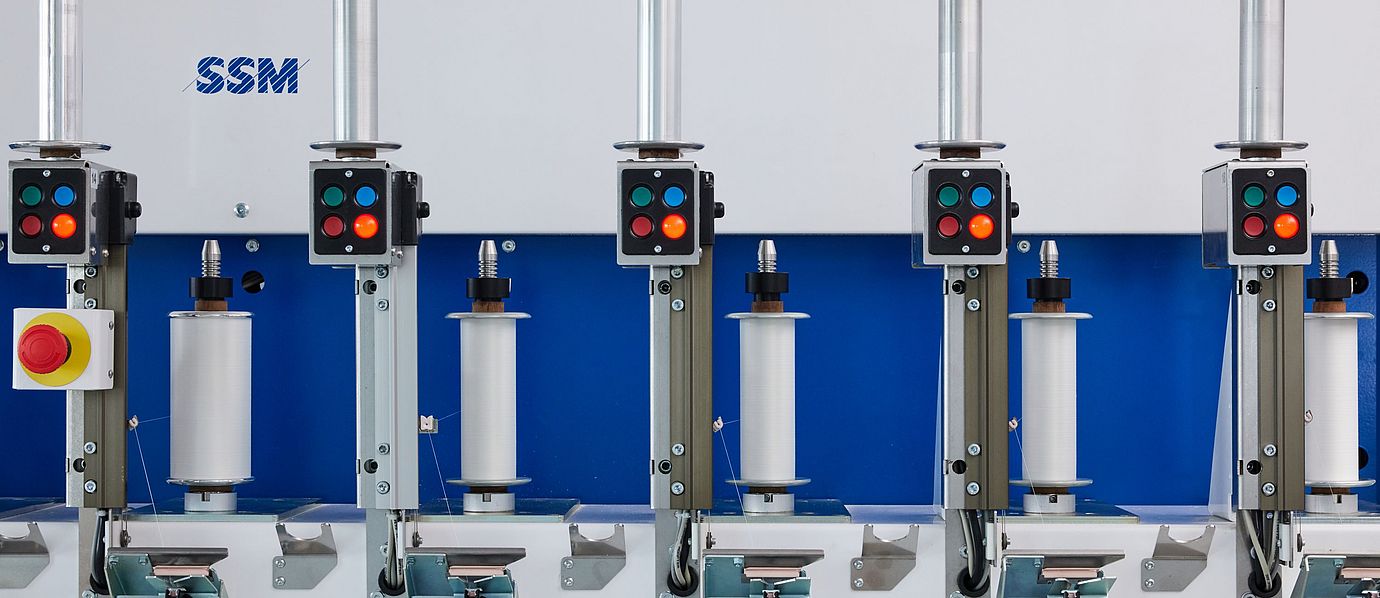

For winding onto flanged-spools, SSM offers the FM1 manual high-speed parallel winder. This machine allows the cost-efficient preparation of flanged bobbins for the subsequent conventional covering process and features a patented automatic traverse correction for excellent unwinding performance. It is also equipped with digitens (online yarn tension regulation) and preciflex (electronic yarn laying system).

FM1 Manual High-Speed Parallel Winder

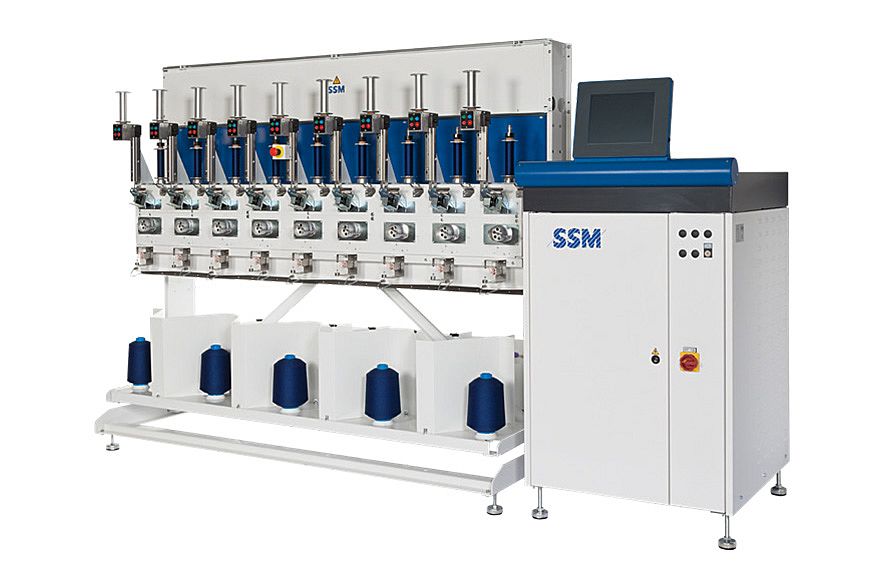

FM1 manual precision parallel winder

The flexible and innovative concept of the manual FM1 parallel winder enables the cost-efficient preparation of flanged spools for the subsequent conventioal-covering- or twisting-process. During the development process, particular attention was paid to low energy consumption (even at high winding speeds) and to achieving flawless unwinding properties.

Technical data

FM1 manual precision parallel winder
Type of windingp and q parallel winding
Mechanical speedup to 1 800 m/min
Spindle speedup to 16 800 min-1
Driveindividual
Yarn layingpreciflex electronic yarn laying system
Package shapedouble/single flanged bobbins, mini cops
Traverse length25 – 165 mm infinitely variable
Yarnsfilaments (FDY, DTY, POY), staple yarns
Yarn countFDY, DTY, staple yarns: up to 1 000 dtex
POY: 11 – 40 dtex (with optional cold drawing device)
Number of spindles min./max.18/108 (double-sided)
