False-Twist Texturing Machines

There is no better machines on the market than the DP5-FT and TG-FT series to produce superior draw textured yarns (DTY). Their optimized yarn path allows better yarn quality at higher production speeds. They make the difference.

DP5-FT automatic false-twist texturing machine

DP5-FT automatic false-twist texturing machine

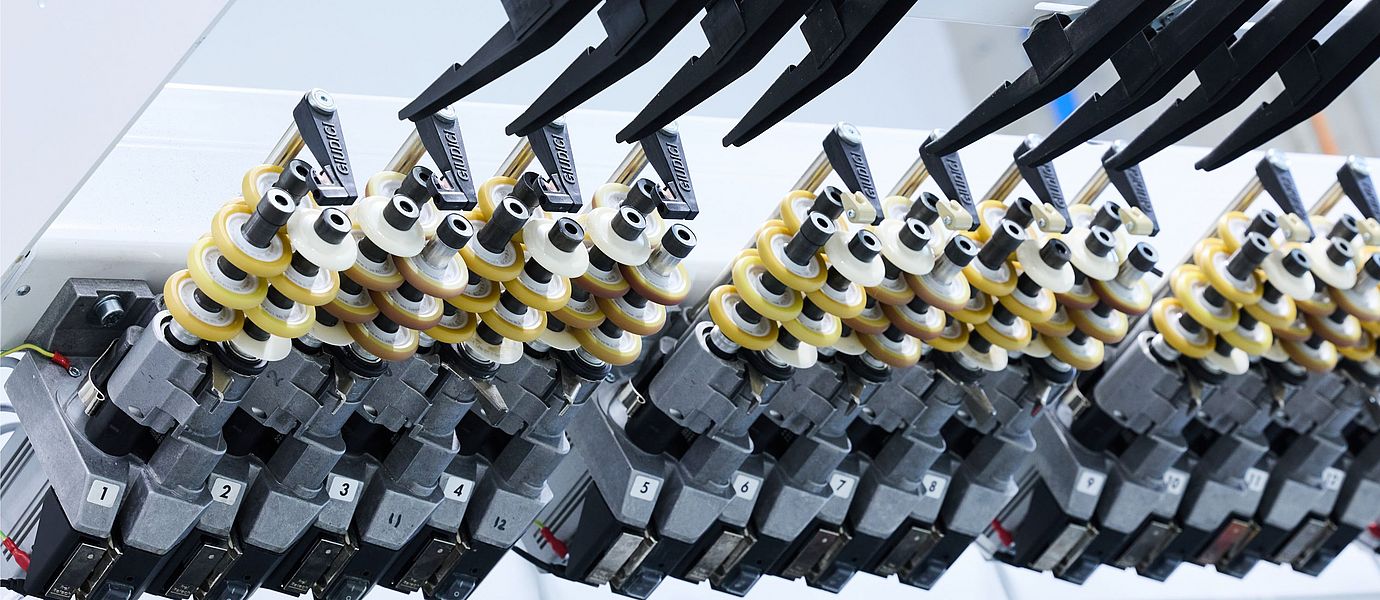

The DP5-FT false-twist texturing machine was developed for a wide final count range (7 to 1,320 dtex). Thanks to the single-position drive, up to four friction spindles per position and a variable yarn path, the productivity very high, but also offers great flexibility. The modular machine concept allows adaptions to changing requirements.

Technical data

DP5-FT automatic false-twist texturing machine
Type of windingDIGICONE, Precision
Mechanical speedup to 1 500 m/min
Driveindividually controlled single drives
Yarn layingfastflex electronic yarn laying system
Tubes/Package shapecylindrical tubes freely programmable up to ⌀ 300 mm
Traverse length100 – 270 mm electronically adjustable
YarnsPA, PP, PES; PBT/POY
Yarn count7 – 1 320 dtex
Number of spindles min./max.5/40 (single sided)
Supply packagesRotary creel: 2 or 4 ends + reserve
Trolley creel: 4 ends + reserve
290 mm tube length: up to ⌀ 400 mm
150 mm tube length: up to ⌀ 450 mm

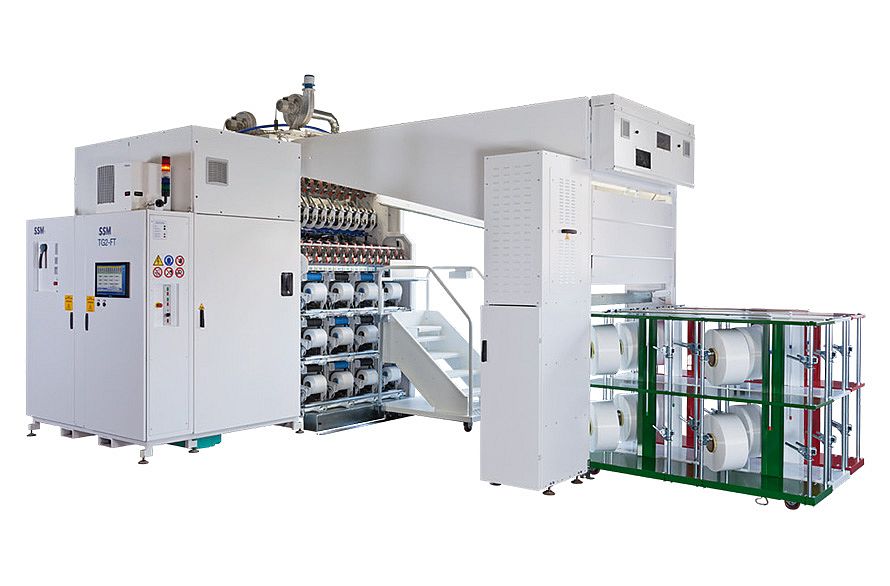

TG2-FT automatic false-twist texturing machine

TG2-FT automatic false-twist texturing machine

The TG2-FT automatic false-twist texturing machine has an individual, frontal doffing system per position which enables a double-sided machine layout. Designed for the cost-efficient processing of high-quality PA, PP and PES filament yarns in the fine to medium final count range (7 to 330 dtex), the TG2-FT fulfils all requirements.

Technical data

TG2-FT automatic false-twist texturing machine
Type of windingrandom
Mechanical speedup to 1 100 m/min
Driveindividually controlled line shafts
Tubes/package shapecylindrical or bi-conical, up to ⌀ 240 mm
Traverse length190 or 245 mm
YarnsPA, PP, PES; POY
Yarn count7 – 330 dtex
Layoutdouble sided
Number of spindles min./max.24/288
Supply package (on trolley creel)1 end and stand-by per position:
250 mm tube length: up to ⌀ 450 mm
150 mm tube length: up to ⌀ 450 mm

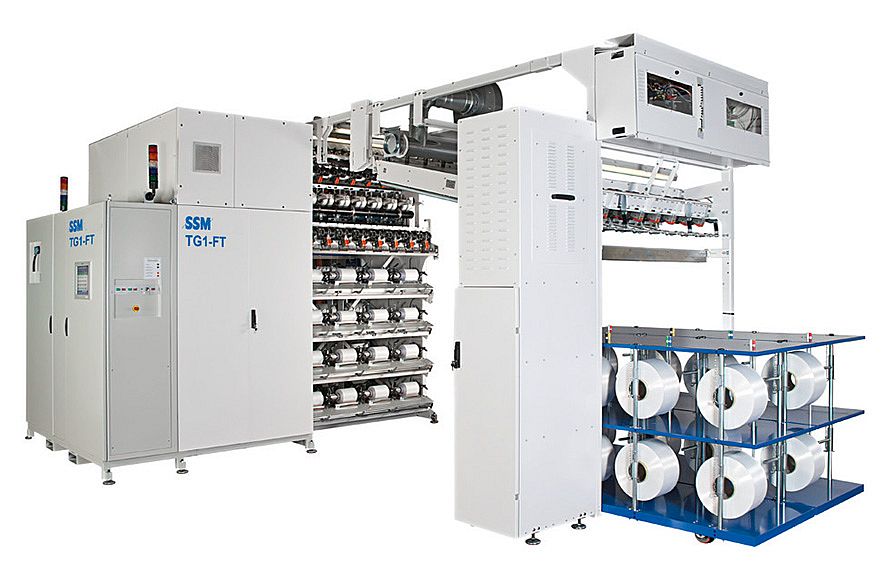

TG1-FT manual false-twist texturing machine

TG1-FT manual false-twist texturing machine

The manual TG1-FT false-twist texturing machine combines a proven texturing path along with a space saving machine design. The result is a machine for the cost efficient production of high quality polyamide (down to 7 dtex), polypropylene as well as fine count polyester yarns with or without elastane.

Technical data

TG1-FT manual false-twist texturing machine
Type of windingrandom
Mechanical speedup to 1 100 m/min
Driveindividually controlled line shafts
Tubes/Package shapecylindrical or bi-conical, up to ⌀ 220 mm
Traverse length190 or 245 mm
YarnsPA, PP, fine count PES, EL/POY
Yarn count7 – 330 dtex
Layoutdouble sided
Number of spindles min./max.32/384
Supply package
(on trolley creel)
1 end and stand-by per position:
250 mm tube length: up to ⌀ 450 mm
150 mm tube length: up to ⌀ 450 mm

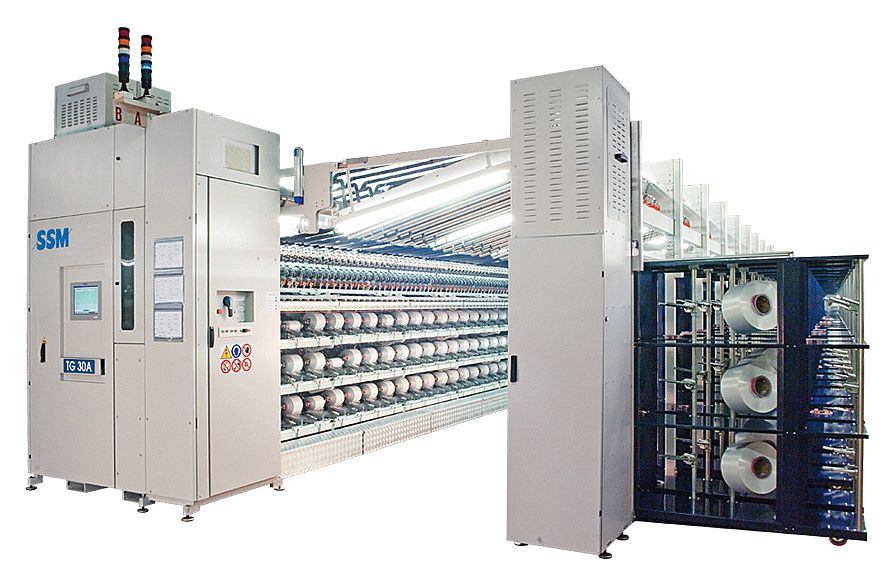

TG.30 A automatic false-twist texturing machine

TG30 A auto-doffing false-twist texturing machine

The TG.30 A automatic false-twist texturing machine has been especially developed for the economic production of fine polyamide and polypropylene yarns.

Technical data

TG.30 A automatic false-twist texturing machine
Type of windingrandom
Mechanical speedup to 1 100 m/min
Driveindividually controlled line shafts
Tubes/Package shapecylindrical or bi-conical, up to ⌀ 250 mm
Traverse length190 or 245 mm
YarnsPA, PP/POY
Yarn count7 – 330 dtex
Number of spindles min./max.12/168 (single sided)
Supply package
(on trolley creel)
1 end and stand-by per position:
290 mm tube length: up to ⌀ 400 mm
150 mm tube length: up to ⌀ 450 mm

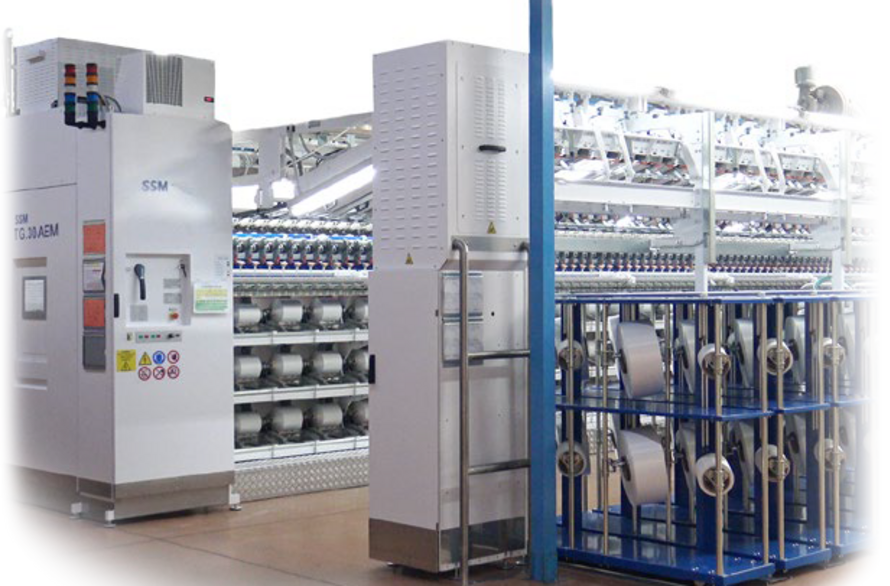

TG.30 AEM automatic false-twist texturing and air covering machine

TG.30 AEM auto-doffing false-twist & air covering

The TG.30 AEM is especially designed for false twist texturing of fine and medium count polymid (PA) and polypropylene (PP) filament yarns. In combination with the integrated elastane feeding device air covered yarns can be directly produced in one process step.

Technical data

TG.30 AEM autoMATIc false-twist & air covering
Type of windingrandom
Mechanical speedup to 1 100 m/min
Driveindividually controlled line shafts
Tubes/Package shapecylindrical or bi-conical, up to ⌀ 250 mm
Traverse length190 or 245 mm
YarnsPA, PP, EL/POY
Yarn count7 – 330 dtex
Number of spindles min./max.12/168 (single sided)
Supply package
(on trolley creel)
up to 1 end and stand-by per position:
290 mm tube length: up to ⌀ 400 mm
150 mm tube length: up to ⌀ 450 mm

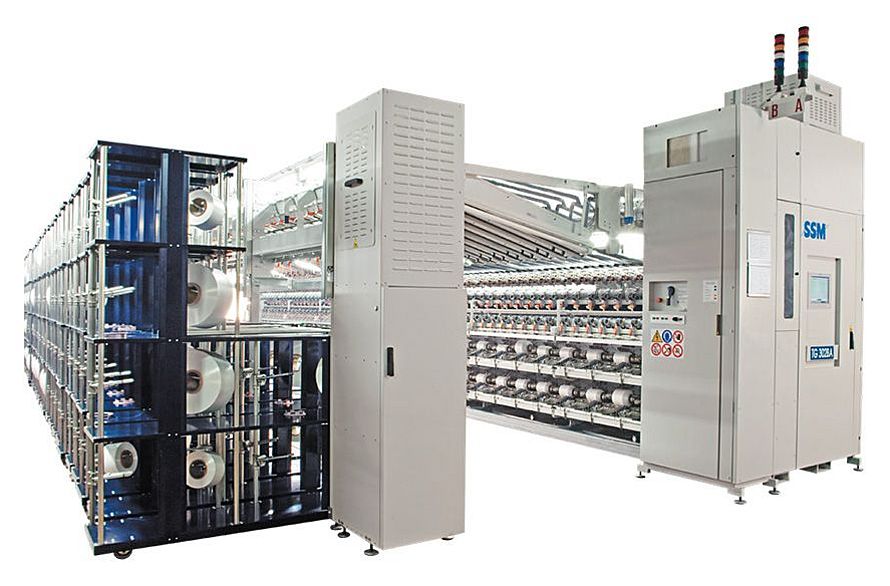

TG.30 2BA automatic double density false-twist texturing machine

TG30 2BA auto-doffing false-twist texturing

The TG.30 2BA false-twist texturing machine with automatic doffer was developed for the production of twist-free S+Z yarns (double density). The short and straight yarn path in the texturing zone is a key feature of the TG.30 2BA, which enables the false-twist texturing of high-quality yarns in the fine to medium final count range.

Technical data

TG.30 2BA automatic false-twist texturing
Type of windingrandom
Mechanical speedup to 1 100 m/min
Driveindividually controlled line shafts
Tubes/Package shapecylindrical or bi-conical, up to ⌀ 250 mm
Traverse length190 or 245 mm
YarnsPA, PP, PBT (TG30 2BA)/POY
Yarn countTG30 2BA: 22 – 220 dtex (2-ply)
Number of spindles min./max.8/80 (single sided)
Supply package (trolley creel)up to 2 ends and stand-by per position:
290 mm tube length: up to ⌀ 400 mm
150 mm tube length: up to ⌀ 450 mm
