Assembly Winding Machines

If single yarns no longer meet the requirement of downstream processes, twisted yarn is the solution. SSM assembly winders ply yarns and prepare tailor-made packages for the exact demands of twisting processes.

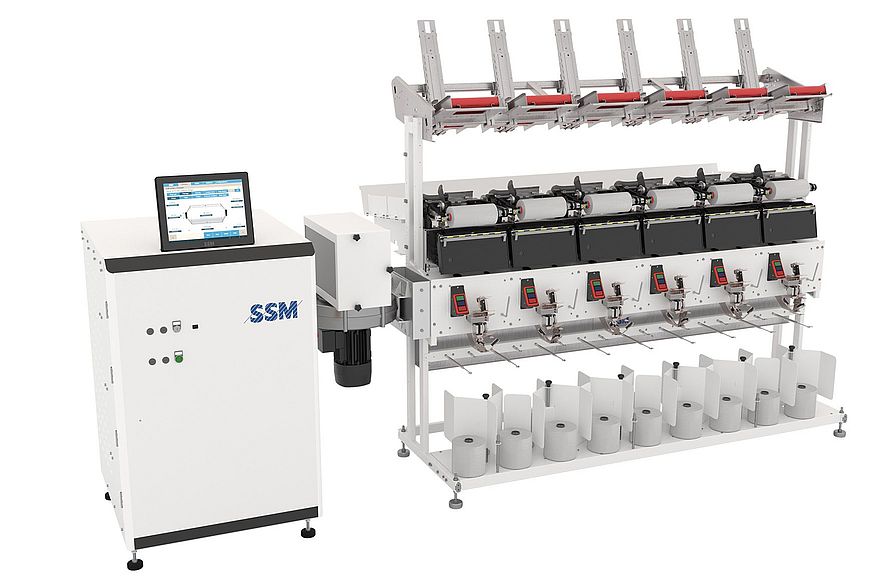

NEO-FD precision assembly winder

NEO-FD economic assembly-winding machine producing high-density, precision wound packages with optimized thread path and simplified design.

The NEO-FD is the economic assembly-winding machine for high density, precision wound packages for twisting. The innovative design of the machine enables an optimized thread path and an overall simplification of the superior winder. This results in low maintenance and service costs. Thanks to fastflex, made-to-measure cross wound packages are possible.

Technical data

NEO-FD precision package winder
Type of windingDIGICONE 2 or precision
Mechanical speedup to 1 500 m/min
Driveindividual
Yarn layingfastflex electronic yarn laying system
Package shapefreely programmable
Take-up tubescylindrical or cones up to 5° 57'
Traverse length25 – 210 mm electronically adjustable
Yarnsstaple yarns and textured filament yarns
Yarn countNe 3 – 140
Number of spindles min./max.6/96 (single sided) and
12/120 (double sided, 2 × 60 back to back)

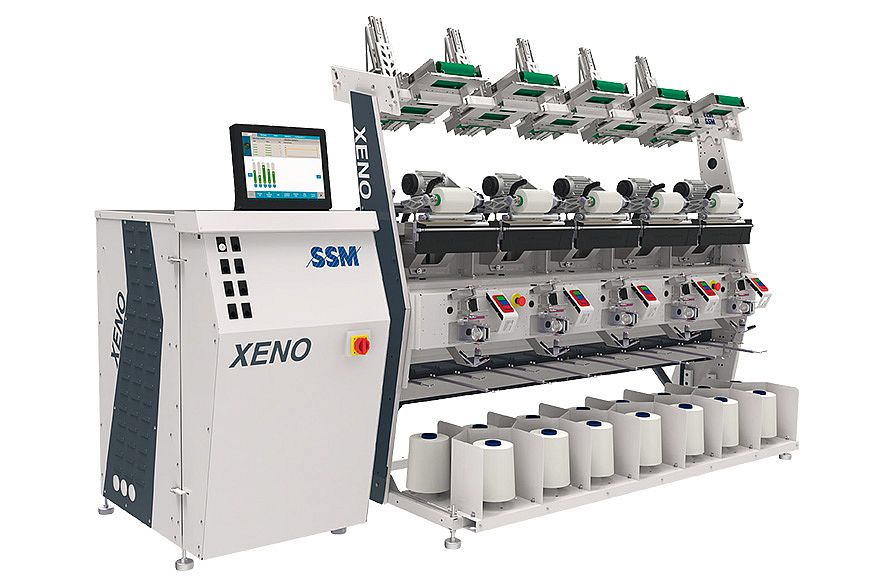

XENO-YD precision assembly winder

XENO-YD precision assembly winder for staple and filament yarns, featuring advanced technology and option to add elastane during assembly.

The XENO-YD is a precision assembly winder for all kind of staple and filament yarns. It is equipped with the latest technology and offers the possibility for adding an elastane component during the assembly process.

Technical data

XENO-YD precision assembly winder
Type of windingDIGICONE 2 or precision
Mechanical speedup to 2 500 m/min
Driveindividual
Yarn layingfastflex electronic yarn laying system
Package shapefreely programmable
Take-up tubescylindrical or cones up to 5° 57'
Traverse length25 – 270 mm electronically adjustable
Yarnsstaple yarns, monofilament, textured, flat and twisted filaments, medium technical yarns
Yarn countNe 1.5 – 240
Number of spindles min./max.5/80 (single sided) and
10/80 (double sided, 2 × 40 back to back)

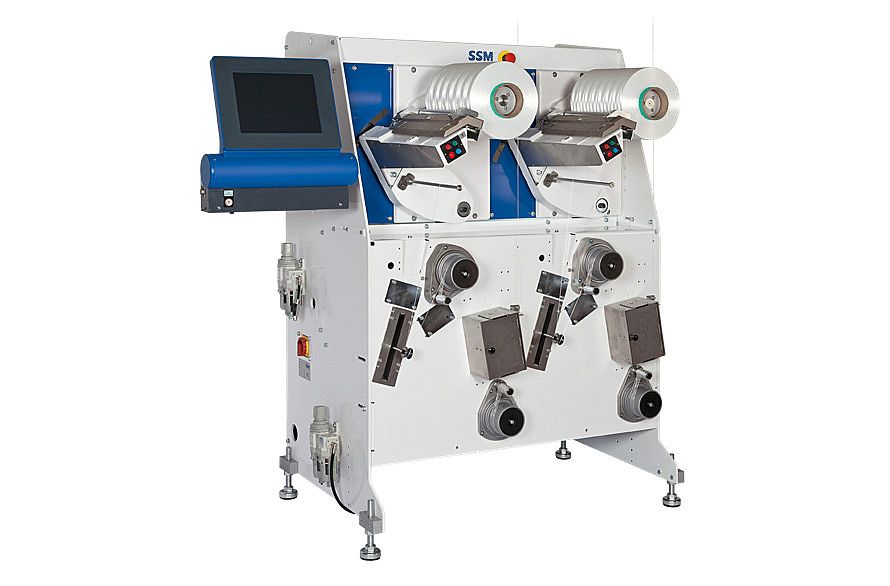

DURO-TD precision assembly winder for technical yarns

DURO-TD assembly winder for technical yarns up to 50,000 dtex, offering high-quality packages and smooth performance in twisting.

The DURO-TD is a precision assembly winder with optional intermingling for technical yarns up to 50 000 dtex. It offers a new level of flexibility and package quality in one machine, thereby ensuring optimal unwinding and running performance in all twisting processes.

Technical data

DURO-TD precision assembly winder, technical yarns
Type of windingDIGICONE, open or closed precision
Mechanical speedup to 1 500 m/min
Driveindividual
Yarn layingfastflex electronic yarn laying system
Package shapefreely programmable
Take-up tubescylindrical or cones up to 3° 30'
Traverse length25 – 320 mm infinitely variable
Yarnsall staple and filament yarns
Yarn countup to 50 000 dtex
Number of spindles min./max.2/40 (single sided)

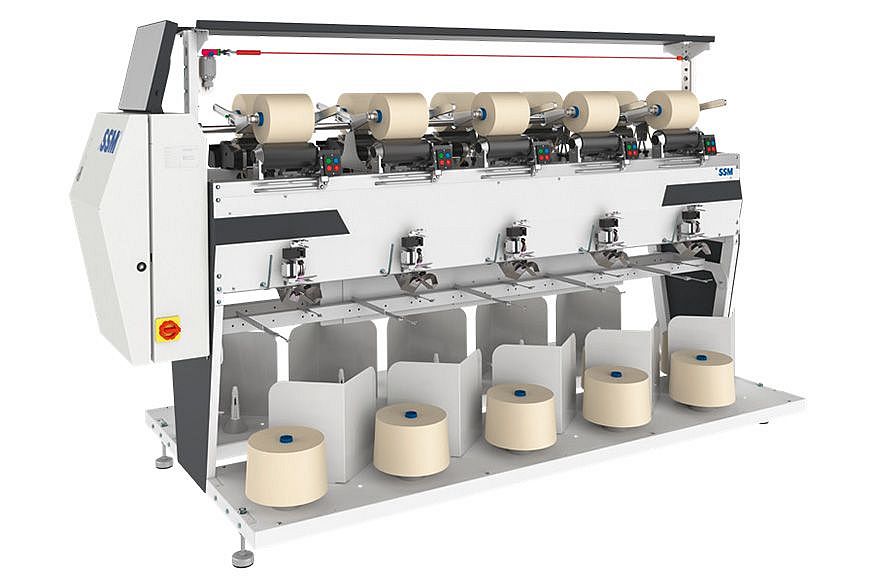

CWX-D random assembly winder

CWX-D energy-efficient random assembly winder designed for producing 2-ply and 3-ply yarns.

The CWX-D is an energy-efficient drum assembly winder specially designed to produce 2-ply as well as 3-ply yarns.

Technical data

CWX-D random assembly winder
Type of windingrandom
Mechanical speedup to 1 300 m/min
Driveindividual per spindle
Yarn layingyarn laying system with grooved drum
Tubes/Package shapecylindrical or cones up to 5° 57'
Traverse length152 mm (6˝)
Supply package diameter2-ply: up to 280 mm
3-ply: up to 240 mm
Yarnsstaple yarns
Yarn countNe 3 – 120
Number of spindles min./max.10/80 (8 double-sided sections)
