Air Covering Machines

XENO-AC air covering machine with single drive technology and flexible design, offering top performance and a competitive edge.

Strive for excellence with the best possible air covering machine on the market. Single drive technology, maximum flexibility, proven yarn path, the XENO-AC and XENO-AC TWIN push the limits and provide customers with a real competitive-edge.

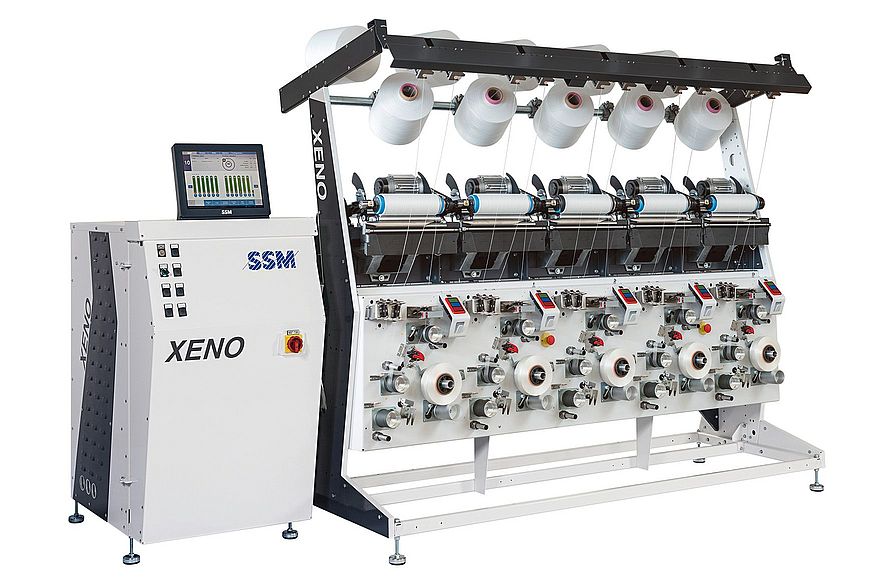

XENO-AC air covering machine

XENO-AC machine providing precise intermingling stability and uniformity designed to meet downstream process demands.
XENO-AC machine mixes filament yarns with elastane, using adjustable settings and a smooth yarn path for consistent and stable results.

The XENO-AC is a yarn processing machine for intermingling filament yarns together with an elastane component. Infinitely adjustable process settings as well as an optimized yarn path enable the best intermingling stability and regularity, according to the specific requirements of the downstream process.

Technical data

XENO-AC air covering machine
Type of windingDIGICONE 2 or precision
Mechanical speedup to 2 000 m/min
Driveindividual
Yarn layingfastflex electronic yarn laying system
Package shapefreely programmable
Take-up tubescylindrical
Traverse length25 – 270 mm infinitely variable
Yarnsfilament yarns, Elastan
Yarn count22 – 3 300 dtex
Number of spindles min./max.5/80 (single sided)
Supply package diameter1-ply: up to 300 mm
2-ply: up to 240 mm
3-ply: up to 200 mm

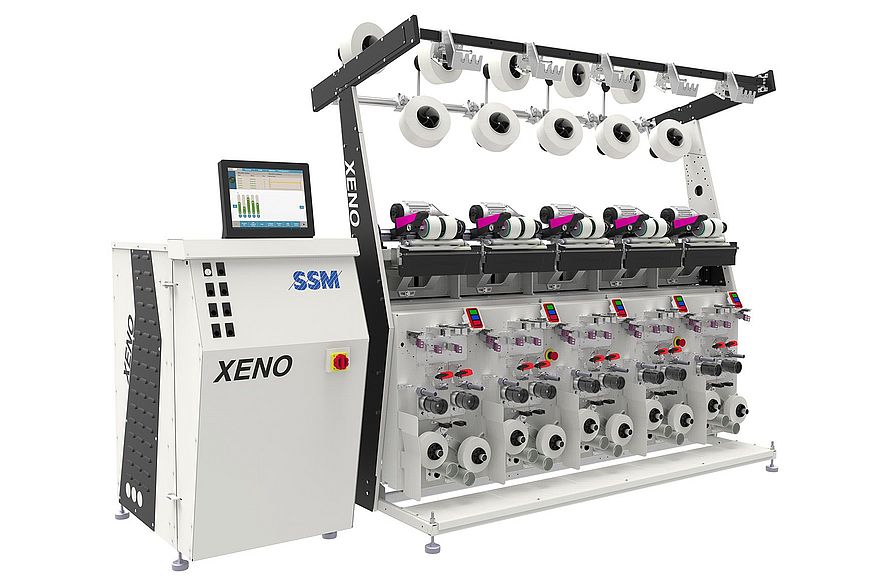

XENO-AC TWIN air covering machine

XENO-AC TWIN air covering machine making elastic dual core yarns with adjustable settings for smooth and stable intermingling.

The XENO-AC TWIN air covering machine is the safe and proven way to produce elastic dual core yarns. Infinitely adjustable process settings as well as an optimized yarn path enable the best regularity and stability of the intermingling, according to the specific requirements of the downstream process.

Technical data

XENO-AC TWIN air covering for dual core Feed yarn
Type of windingDIGICONE 2 or precision
Mechanical speedup to 2 000 m/min
Driveindividual
Yarn layingfastflex electronic yarn laying system
Package shapefreely programmable
Take-up tubescylindrical
Traverse length25 – 270 mm infinitely variable
Yarnsfilament yarns, elastane
Yarn count22 – 3 300 dtex
Number of spindles min./max.5/80 (single sided)
Supply packagesspecial peg for T-400 supply packages
(two per position)
