Singeing Machines

Aim for exceptional results with the GSX3-GD, one of the most advanced singeing machines available. It delivers outstanding yarn quality and sets a new standard in yarn singeing performance.

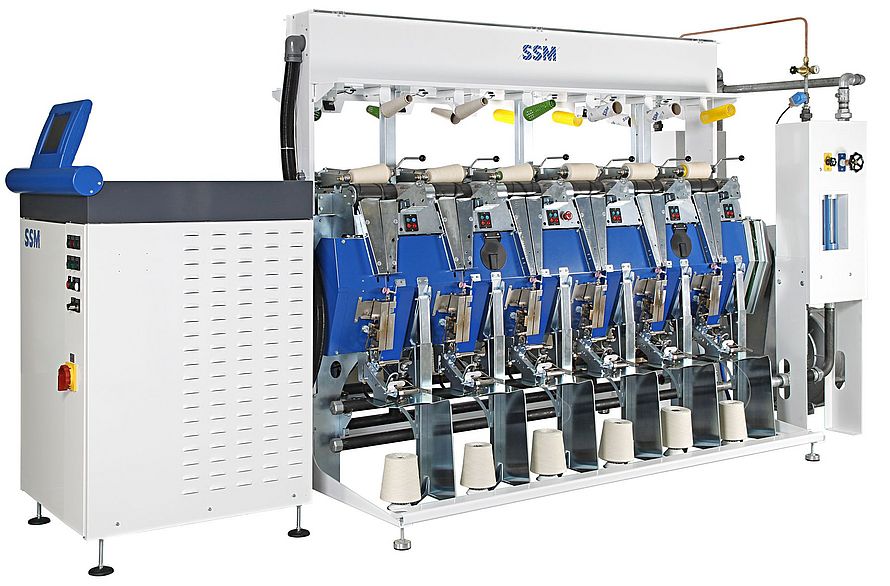

GSX3-GD yarn singeing and random winding machine

The yarn gas singeing machine GSX3 assures high customer benefits and top qualities. Thanks to optimized yarn path, even the finest yarn counts can be processed to best effect. Highest flexibility with individual spindle drive helps to increase significantly the production efficiency.

Technical data

GSX3-GD yarn singeing and random winding machine
Type of windingdrum with ceramic inserts, random
Mechanical speedup to 1 500 m/min (process speed depending on process parameters)
Driveindividual
Take-up tubescylindrical and cones up to 4° 20'
Traverse length152 mm
Yarnscotton, rayon staple fiber yarns, blends and other spun yarns
Yarn countNe 10/2…160/2 (Nm 16/2…270/2) (other yarn counts on request)
Number of spindles min./max.2 x 6 / 2 x 42
Supply package diameterup to 280 mm

Downloads

SSM Product Range – Brochure

Rieter switchboard

Contact

SSM always wants to answer queries quickly and competently.
