Sewing Thread

show general information
  • Thread King III KT

    Automatic high-performance finish winder

    • King spools

      for sewing threads / final make-up

    • FilamentYarnFilament Yarn

      Synthetic yarn composed of one or more filaments that run the whole length of the yarn. Yarns of one filament are referred to as mono-filament; yarns of several filaments as multi-filament.

    • STSewing Thread

      Sewing threads yarns are especially made to pass rapidly through a sewing machine. It is a fine cord of a fibrous material, made of two or more filaments twisted together. The yarn has to form efficient stitches without breaking or becoming distorted.

    Pushing the limits of sewing thread production, the Thread King III KT has no equal when it comes to efficiency. With speeds up to 15 000 rpm and a patented tuck-in system, the machine offers a shorter production cycle and the shortest doffing cycle on the market. It also features an increased supply tube quantity as well as an improved length accuracy, resulting in higher profitability and up to 50% safety margin reduction on wound packages.

    show more textshow less text

    Technical data Thread King III KT (TK3-KT)

    Type of winding

    precision crosswind

    Mechanical speed

    up to 2 500 m/min (process speed depending on process parameters)

    Package shape

    kingspools

    Traverse length

    1.5" – 6"/ 35 – 152.4 mm

    Take-up package diameter

    up to 125 mm (depending on tube dimensions, certain restrictions may apply)

    Supply package diameter

    up to 320 mm

    Yarns

    filament twisted / flat, textured filament, natural silk, viscose / rayon, technical thread, special thread

    Yarn count range

    up to 3 300 dtex with doffer
    up to 5 000 dtex without doffer

    Take-up tubes

    kingspools up to 2° / tip diameter ≥18 mm

    Layout

    single sided

    Number of spindles per section

    5

    Number of spindles min. / max.

    5 / 50

    Maximum number of spindles per oiling system

    25

    Gauge

    440 mm

    Drive

    individual double drive system per spindle

    Installed power

    480 W per spindle

    Power consumption

    from 50 to 140 W per spindle (depending on winding parameters/options)

    Compressed air

    6 bar (7 bar for snap execution)

    show more factsshow less facts

    Downloads

  • Thread King III CT

    Automatic high-performance finish winder

    • Cones sewing thread

      for a conical package shape with 3" - 6" traverse length

    • SpunYarnSpun yarn

      Textile yarn spun and twisted from staple length fiber, either natural or synthetic.

    • FilamentYarnFilament Yarn

      Synthetic yarn composed of one or more filaments that run the whole length of the yarn. Yarns of one filament are referred to as mono-filament; yarns of several filaments as multi-filament.

    • STSewing Thread

      Sewing threads yarns are especially made to pass rapidly through a sewing machine. It is a fine cord of a fibrous material, made of two or more filaments twisted together. The yarn has to form efficient stitches without breaking or becoming distorted.

    Pushing the limits of sewing thread production, the Thread King III CT has no equal when it comes to efficiency. With speeds up to 15 000 rpm and a patented tuck-in system, the machine offers a shorter production cycle and the shortest doffing cycle on the market. It also features an increased supply tube quantity as well as an improved length accuracy, resulting in higher profitability and up to 50% safety margin reduction on wound packages.

    show more textshow less text

    Technical data Thread King III CT (TK3-CT)

    Type of winding

    precision crosswind

    Mechanical speed

    up to 2 500 m/min (process speed depending on process parameters)

    Package shape

    cones

    Traverse length

    3" – 6"/ 76.2 – 152.4 mm

    Take-up package diameter

    up to 160 mm

    Supply package diameter

    up to 320 mm

    Yarns

    spun thread/core spun, textured filament, technical thread, special thread

    Yarn count range

    up to 3 300 dtex with doffer
    up to 5 000 dtex without doffer

    Take-up tubes

    cones up to 5° 57' / tip diameter ≥18 mm

    Layout

    single sided

    Number of spindles per section

    5

    Number of spindles min. / max.

    5 / 50

    Maximum number of spindles per oiling system

    25

    Gauge

    440 mm

    Drive

    individual double drive system per spindle

    Installed power

    480 W per spindle

    Power consumption

    from 50 to 140 W per spindle (depending on winding parameters/options)

    Compressed air

    6 bar

    show more factsshow less facts

    Downloads

  • TK2-20 KTE

    Automatic high-performance Kingspool winder

    • King spools

      for sewing threads / final make-up

    • FilamentYarnFilament Yarn

      Synthetic yarn composed of one or more filaments that run the whole length of the yarn. Yarns of one filament are referred to as mono-filament; yarns of several filaments as multi-filament.

    • STSewing Thread

      Sewing threads yarns are especially made to pass rapidly through a sewing machine. It is a fine cord of a fibrous material, made of two or more filaments twisted together. The yarn has to form efficient stitches without breaking or becoming distorted.

    The TK2-20 KTE is a fully automatic Kingspool winder. It is certainly the most flexible sewing thread finish winder for bonded filaments in the market and features by far the highest production performance worldwide.

    show more textshow less text

    Technical data TK2-20 KTE

    Types of winding

    precision crosswind

    Mechanical speed

    up to 1200 m/min (process speed depending on process parameters)

    Take-up tubes / Package shape

    Kingspools (up to 2° conicity)

    q winding standard configuration

    p winding optional configuration

    Traverse length

    2"...4" (infinitely variable, base diameter up to 105 mm)

    Take-up package diameter

    up to 105 mm

    85...105 mm: depending on tube dimensions, certain restrictions may apply

    Supply package diameter

    up to 300 mm

    Supply package height

    up to 400 mm

    Yarns

    bonded filaments (other threads on request)

    Count

    up to 3300 dtex

    Layout

    single sided

    N° of spindles per section

    5

    min./max. N° of spindles per machine

    5 / 40

    max. N° of spindles per oiling system

    20

    Gauge

    440 mm

    Drive

    individual two drive system per spindle

    Installed power

    1.4 kW (5 spindles)

    Compressed air

    6 bar

    show more factsshow less facts

    Downloads

  • TK2-20 KE

    Semi-automatic high-performance Kingspool winder

    • King spools

      for sewing threads / final make-up

    • FilamentYarnFilament Yarn

      Synthetic yarn composed of one or more filaments that run the whole length of the yarn. Yarns of one filament are referred to as mono-filament; yarns of several filaments as multi-filament.

    • STSewing Thread

      Sewing threads yarns are especially made to pass rapidly through a sewing machine. It is a fine cord of a fibrous material, made of two or more filaments twisted together. The yarn has to form efficient stitches without breaking or becoming distorted.

    The TK2-20 KE is a semi-automatic winder for Kingspools. With the exception of the automatic change, this new development uses the same state-of-the-art technology as the fully automatic TK2-20 KTE winder. Furthermore, this winder offers the same advantages regarding performance, flexibility and operation comfort.

    show more textshow less text

    Technical data TK2-20 KE

    Types of winding

    precision crosswind

    Mechanical speed

    up to 1200 m/min (process speed depending on process parameters)

    Take-up tubes / Package shape

    Kingspools (up to 2°)

    q winding standard configuration

    p winding optional configuration

    Traverse length

    2"...7" (infinitely variable)

    foot diameter up to 160 mm

    Take-up package diameter

    up to 160 mm

    Supply package diameter

    up to 300 mm

    Supply package height

    up to 400 mm

    Yarns

    bonded filaments (other threads on request)

    Count

    up to 5000 dtex

    Layout

    single sided

    N° of spindles per section

    5

    min./max. N° of spindles per machine

    5 / 40

    max. N° of spindles per oiling system

    20

    Gauge

    440 mm

    Drive

    individual two drive system per spindle

    Installed power

    1.4 kW (5 spindles)

    Compressed air

    not required

    show more factsshow less facts

    Downloads

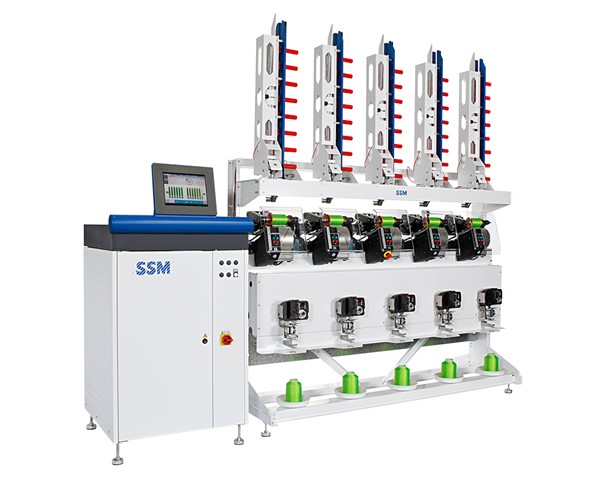

  • TK2-20 KT

    Automatic high-performance Kingspool winder

    • King spools

      for sewing threads / final make-up

    • FilamentYarnFilament Yarn

      Synthetic yarn composed of one or more filaments that run the whole length of the yarn. Yarns of one filament are referred to as mono-filament; yarns of several filaments as multi-filament.

    • STSewing Thread

      Sewing threads yarns are especially made to pass rapidly through a sewing machine. It is a fine cord of a fibrous material, made of two or more filaments twisted together. The yarn has to form efficient stitches without breaking or becoming distorted.

    This new development is derived from the TK2-20 CT and uses the same platform, thus it is possible with a conversion kit to switch from a "Kingspool" to a "cone" make-up. The TK2-20 KT offers the same advantages regarding performance, flexibility and operation comfort as the TK2-20 CT. It features by far the highest production performace worldwide.

    show more textshow less text

    Technical data TK2-20 KT

    Types of winding

    precision crosswind

    Mechanical speed

    up to 13000 min-1 (up to 2000 m/min) (process speed depending on process parameters)

    Package shape

    Kingspool

    Traverse length

    1.5"...4" (110 mm)

    Take-up tubes

    cylindrical or conical Kingspools, conicity up to 2°; tip diameter ≥ 18 mm

    Take-up package diameter

    up to 105 mm

    (85...105 mm: depending on tube dimensions, certain restrictions may apply)

    Supply package diameter

    up to 320 mm

    Yarns

    filament twisted / flat, textured filament, natural silk, viscose / rayon, technical thread, special thread

    Count

    up to 3300 dtex

    Layout

    single sided

    N° of spindles per section

    5

    min./max. N° of spindles per machine

    5 / 40

    max. N° of spindles per oiling system

    20

    Gauge

    440 mm

    Drive

    individual two-drive-system per spindle

    Installed power

    1.4 kW (5 spindles)

    Compressed air

    6 bar

    show more factsshow less facts

    Downloads

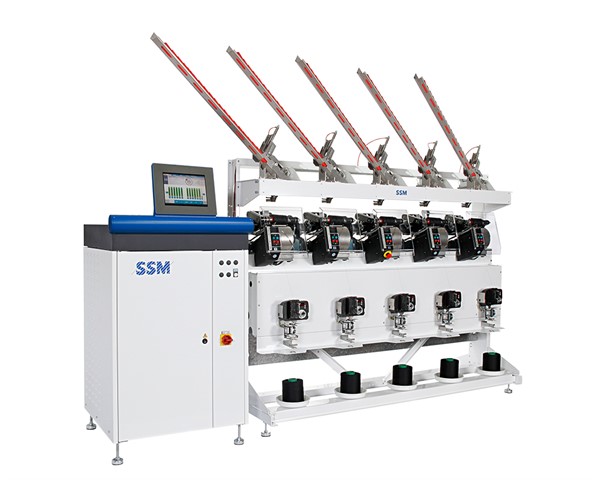

  • TK2-20 CT

    Automatic high-performance cone winder

    • Cones sewing thread

      for a conical package shape with 3" - 6" traverse length

    • SpunYarnSpun yarn

      Textile yarn spun and twisted from staple length fiber, either natural or synthetic.

    • FilamentYarnFilament Yarn

      Synthetic yarn composed of one or more filaments that run the whole length of the yarn. Yarns of one filament are referred to as mono-filament; yarns of several filaments as multi-filament.

    • STSewing Thread

      Sewing threads yarns are especially made to pass rapidly through a sewing machine. It is a fine cord of a fibrous material, made of two or more filaments twisted together. The yarn has to form efficient stitches without breaking or becoming distorted.

    The TK2-20 CT sets new standards in the market in combining the highest performance of the well-known THREAD KING series with the functionality and operation comfort of modern control concepts and state-of-the-art drive technology.

    show more textshow less text

    Technical data TK2-20 CT

    Types of winding

    precision crosswind

    Mechanical speed

    up to 13000 min-1 (up to 2000 m/min) (process speed depending on process parameters)

    Package shape

    cones

    Traverse length

    3"...6"

    Take-up tubes

    cones with a conicity from 1° 30’ up to 5° 57’; tip diameter ≥ 18 mm

    Take-up package diameter

    up to 160mm

    Supply package diameter

    up to 320 mm

    Yarns

    spun thread / core spun, textured filament, technical thread, special thread

    Count

    up to 3300 dtex

    Layout

    single sided

    N° of spindles per section

    5

    min./max. N° of spindles per machine

    5 / 40

    max. N° of spindles per oiling system

    20

    Gauge

    440 mm

    Drive

    individual two-drive-system per spindle

    Installed power

    1.4 kW (5 spindles)

    Compressed air

    6 bar

    show more factsshow less facts

    Downloads

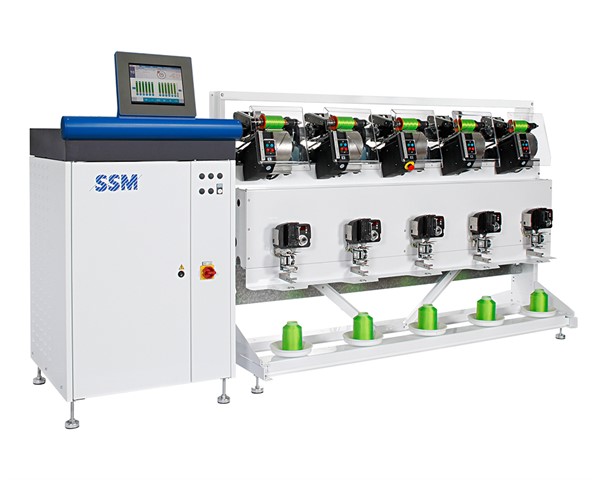

  • TK2-20 C

    High performance cone winder

    • Cones sewing thread

      for a conical package shape with 3" - 6" traverse length

    • SpunYarnSpun yarn

      Textile yarn spun and twisted from staple length fiber, either natural or synthetic.

    • FilamentYarnFilament Yarn

      Synthetic yarn composed of one or more filaments that run the whole length of the yarn. Yarns of one filament are referred to as mono-filament; yarns of several filaments as multi-filament.

    • STSewing Thread

      Sewing threads yarns are especially made to pass rapidly through a sewing machine. It is a fine cord of a fibrous material, made of two or more filaments twisted together. The yarn has to form efficient stitches without breaking or becoming distorted.

    This new development uses the same state-of-the-art technology as the fully automatic winder and, with the exception of the automatic change, offers the same advantages regarding performance, flexibility and operation comfort:

    show more textshow less text

    Technical data TK2-20 C

    Types of winding

    precision crosswind

    Mechanical speed

    up to 13000 min-1 (up to 2000 m/min) (process speed depending on process parameters)

    Package shape

    cones

    Traverse length

    cones: 3" - 6"

    Take-up tubes

    cones with a conicity from 1° 30’ up to 5° 57’; tip diameter ≥ 18 mm

    cylindrical or conical Kingspools, conicity up to 2°; tip diameter ≥ 18 mm

    Supply package diameter

    up to 320 mm

    Take-up package diameter

    up to 160mm

    Yarns

    cones: spun thread / core spun, textured filament, technical thread, special thread

    Kingspools: filament twisted / flat, textured filament, natural silk, viscose / rayon, technical thread, special thread

    Count

    up to 5000 dtex

    Layout

    single sided

    N° of spindles per section

    5

    min. / max. N° of spindles

    5 / 40

    max. N° of spindles per oiling system

    20

    Gauge

    440 mm

    Drive

    individual two-drive-system per spindle

    Installed power

    1.4 kW (5 spindles)

    Compressed air

    not required

    show more factsshow less facts

    Downloads

  • TK2-20 K

    High performance Kingspool winder

    • King spools

      for sewing threads / final make-up

    • FilamentYarnFilament Yarn

      Synthetic yarn composed of one or more filaments that run the whole length of the yarn. Yarns of one filament are referred to as mono-filament; yarns of several filaments as multi-filament.

    • STSewing Thread

      Sewing threads yarns are especially made to pass rapidly through a sewing machine. It is a fine cord of a fibrous material, made of two or more filaments twisted together. The yarn has to form efficient stitches without breaking or becoming distorted.

    This new development uses the same state-of-the-art technology as the fully automatic winder and, with the exception of the automatic change, offers the same advantages regarding performance, flexibility and operation comfort:

    show more textshow less text

    Technical data TK2-20 K

    Types of winding

    precision crosswind

    Mechanical speed

    up to 13000 min-1 (up to 2000 m/min) (process speed depending on process parameters)

    Package shape

    Kingspools

    Traverse length

    Kingspools: 1.5"...6"

    Take-up tubes

    cones with a conicity from 1° 30’ up to 5° 57’; tip diameter ≥ 18 mm
    cylindrical or conical Kingspools, conicity up to 2°; tip diameter ≥ 18 mm

    Supply package diameter

    up to 320 mm

    Take-up package diameter

    up to 160mm

    Yarns

    cones: spun thread / core spun, textured filament, technical thread, special thread
    Kingspools: filament twisted / flat, textured filament, natural silk, viscose / rayon, technical thread, special thread

    Count

    up to 5000 dtex

    Layout

    single sided

    N° of spindles per section

    5

    min. / max. N° of spindles

    5 / 40

    max. N° of spindles per oiling system

    20

    Gauge

    440 mm

    Drive

    individual two-drive-system per spindle

    Installed power

    1.4 kW (5 spindles)

    Compressed air

    not required

    show more factsshow less facts

    Downloads

  • TK2-20 TT

    Automatic high-performance cops winder

    • Tubes sewing thread

      or cop for sewing threads with 1.5" - 4" traverse length

    • SpunYarnSpun yarn

      Textile yarn spun and twisted from staple length fiber, either natural or synthetic.

    • FilamentYarnFilament Yarn

      Synthetic yarn composed of one or more filaments that run the whole length of the yarn. Yarns of one filament are referred to as mono-filament; yarns of several filaments as multi-filament.

    • STSewing Thread

      Sewing threads yarns are especially made to pass rapidly through a sewing machine. It is a fine cord of a fibrous material, made of two or more filaments twisted together. The yarn has to form efficient stitches without breaking or becoming distorted.

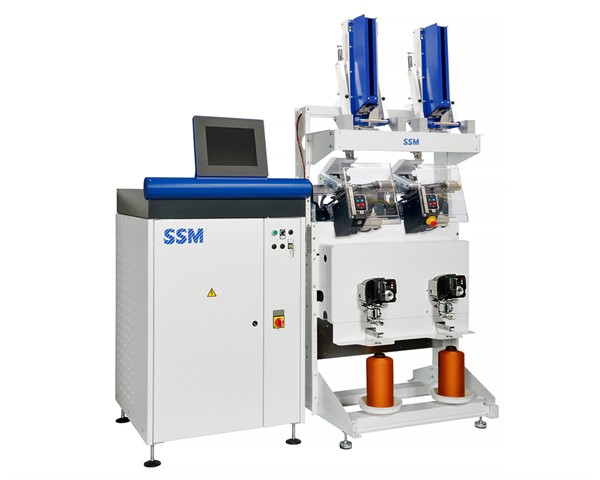

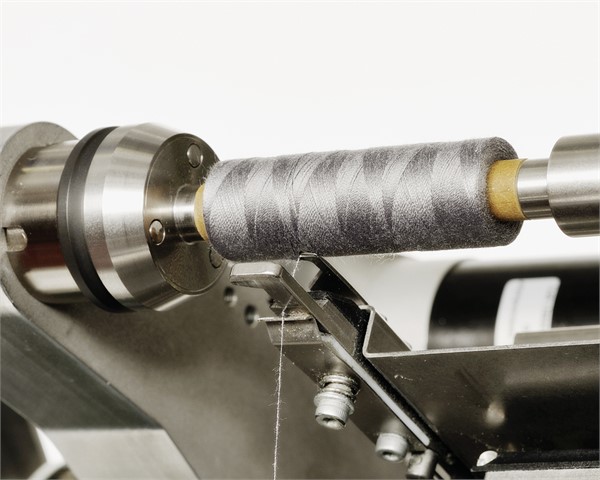

    The TK2-20 TT is a unique sewing thread winder for small make-ups on cylindrical tubes (cops). This new development combines the highest performance of the well known THREAD KING series with the functionality and operation comfort of modern control concepts and state-of-the-art drive technology.

    show more textshow less text

    Technical data TK2-20 TT

    Types of winding

    precision crosswind

    Mechanical speed

    up to 13000 min-1 (up to 2000 m/min) (process speed depending on process parameters)

    Package shape

    cylindrical tubes (cops)

    Traverse length

    1.5"...4" (110 mm)

    Take-up tubes

    cylindrical; max. length 120 mm, base diameter 10 mm (smaller on request)

    Take-up package diameter

    up to 85 mm

    Supply package diameter

    up to 320 mm

    Yarns

    spun thread / core spun, filament twisted / flat, textured filament, natural silk, viscose / rayon, technical thread, special thread

    Count

    up to 2000 dtex

    Layout

    single sided

    N° of spindles per module

    2

    min./max. N° of spindles per machine

    2 / 40

    max. N° of spindles per oiling system

    20

    Gauge

    440 mm

    Drive

    individual two-drive-system per spindle

    Installed power

    0.56 kW (2 spindles)

    Compressed air

    6 bar

    show more factsshow less facts

    Downloads
