假捻变形

show general information
  • TG2-FT

    False-twist texturing machine

    • 筒管

      或纱管,是最灵活而广泛的卷装形状的基础(如:平行管 - 无收边 / 双锥度 - 两端收边 / 单端收边 / 瓶形),这取决于卷绕装置(卷绕形式)

    • FilamentYarn长丝

      由一根或多根长纤维组成的合成纱线,整根丝连续。一根长丝的纱线称做单丝,多根长丝的纱线称做复丝

    • PP丙纶(PP)

      丙纶是一种热塑性聚合物,具有广泛应用,包括包装材料和标签材料,纺织材料(如绳,保暖内衣和地毯),文具,塑料部件,各种可回用容器,实验室设备,扩音器,汽车零部件,合成纸币。其为单体丙烯加聚制成的聚合物,坚实且通常耐很多溶剂,耐酸碱。

    • PET / PES聚酯

      由热塑性聚合物制成的合成纤维。该聚合物在其主分子链上含有酯类官能团。通常指一种叫聚对苯二甲酸乙二醇酯(PET)或聚琥珀酸酯(PES)的聚合物,熔点从103 - 106°C。

    • EL氨纶

      氨纶或斯潘德克斯弹性纤维是一种聚氨酯 - 聚脲共聚物。该合成纤维可拉伸长度四到七倍,当张力松驰后又回复至原始长度。应用在需要高度永久弹性的所有领域:裤袜,内衣,运动服,并用于机织物和针织物。

    • PA锦纶

      亦称尼龙。PA是化学纤维,从合成聚合物制成。锦纶非常耐撕裂,有弹性,可拉伸,少量吸湿。此外,其极为抗皱,也快干。

    • POY预取向丝

      亦称部分取向丝POY,这是化纤的主要形式。涤纶POY是涤纶切片纺丝而成的第一形态,主要用于变形。

    • DTY弹力丝

      从POY进行同时加捻和牵伸而成。DTY丝主要用于机织和针织。

    • PBT聚对苯二甲酸丁二醇酯

      PBT与其它热塑性聚酯相似。与PET相比,PBT强度和刚性略低,但更具抗冲击性。其纤维具自然伸展,可用于混织成运动服(最常见的是泳衣)。

    The SSM GIUDICI TG2-FT false-twist texturing machine is the next step of the well introduced TG1. It comes with an individual, frontal doffing system to allow double-sided concept of the machine (one full package and one empty tube in the cradle whilst a package is being processed). The design is made for the cost efficient production of high quality Polyamide (down to 7 dtex), Polypropylene as well as fine count Polyester yarns.

    The key features are:

    show more textshow less text

    Technical data TG2-FT

    Type of winding

    random

    Mechanical speed

    up to 900 m/min (process speed depending on process parameters, texturing jet and supply yarn quality)

    Package shape

    Cylindrical or bi-conical

    Initial traverse length

    195 or 245 mm

    Take-up tube dimensions

    Length 229 or 289 mm, ID 69 mm, rolled nose ID 57 mm

    Take-up package diameter

    up to 240 mm

    Package weight

    up to 5 kg

    Supply package (on trolley creel)

    1 end and stand-by per position:
    – up to ø 450 mm, 250 mm tube length
    or
    – up to ø 450 mm, 150 mm tube length

    Fibre material / Fibre structure

    PA, PP, PES, POY

    Count range

    7...300 dtex

    Take-up levels

    3

    Layout / N° of positions min. / max.

    Double sided / min. 24 / max. 288

    Drive

    Split machine with individually controlled line shafts per side

    Electrical power (basic power supply)

    400 V, 50 cycles, 3 phases, loadable neutral, ground (adaptable to other power supplies)

    Power consumption (expected average at 175 °C and 800 m/min)

    – DTY production: 0.31 kW per position
    – DTY production incl. air covering: 0.38 kW per position

    Compressed air requirement

    Compressor with air dryer, oil filter and air tank pressure at 8 bar for machine operation and process air

    Process air consumption

    depending on type of jet and texturing parameters, according to indication of jet manufacturer

    show more factsshow less facts

    Downloads

  • TG1-FT

    Manual false-twist texturing machine

    • 筒管

      或纱管,是最灵活而广泛的卷装形状的基础(如:平行管 - 无收边 / 双锥度 - 两端收边 / 单端收边 / 瓶形),这取决于卷绕装置(卷绕形式)

    • FilamentYarn长丝

      由一根或多根长纤维组成的合成纱线,整根丝连续。一根长丝的纱线称做单丝,多根长丝的纱线称做复丝

    • PP丙纶(PP)

      丙纶是一种热塑性聚合物,具有广泛应用,包括包装材料和标签材料,纺织材料(如绳,保暖内衣和地毯),文具,塑料部件,各种可回用容器,实验室设备,扩音器,汽车零部件,合成纸币。其为单体丙烯加聚制成的聚合物,坚实且通常耐很多溶剂,耐酸碱。

    • PET / PES聚酯

      由热塑性聚合物制成的合成纤维。该聚合物在其主分子链上含有酯类官能团。通常指一种叫聚对苯二甲酸乙二醇酯(PET)或聚琥珀酸酯(PES)的聚合物,熔点从103 - 106°C。

    • EL氨纶

      氨纶或斯潘德克斯弹性纤维是一种聚氨酯 - 聚脲共聚物。该合成纤维可拉伸长度四到七倍,当张力松驰后又回复至原始长度。应用在需要高度永久弹性的所有领域:裤袜,内衣,运动服,并用于机织物和针织物。

    • PA锦纶

      亦称尼龙。PA是化学纤维,从合成聚合物制成。锦纶非常耐撕裂,有弹性,可拉伸,少量吸湿。此外,其极为抗皱,也快干。

    • POY预取向丝

      亦称部分取向丝POY,这是化纤的主要形式。涤纶POY是涤纶切片纺丝而成的第一形态,主要用于变形。

    • DTY弹力丝

      从POY进行同时加捻和牵伸而成。DTY丝主要用于机织和针织。

    • PBT聚对苯二甲酸丁二醇酯

      PBT与其它热塑性聚酯相似。与PET相比,PBT强度和刚性略低,但更具抗冲击性。其纤维具自然伸展,可用于混织成运动服(最常见的是泳衣)。

    The manual SSM GIUDICI TG1-FT falsetwist texturing machine combines a proven texturing path along with a spacing saving machine design. The result is a machine for the cost efficient production of high quality Polyamide (down to 7 dtex), Polypropylene as well as fine count Polyester yarns.

    The key features are:

    show more textshow less text

    Technical data TG1-FT

    Type of winding

    random

    Mechanical speed

    up to 1200 m/min (process speed depending on process parameters and supply yarn / package)

    Package shape

    Cylindrical or biconical

    Initial traverse length

    195 or 245 mm

    Take-up tube dimensions

    Length 229 or 289 mm, ID 69 mm, rolled nose ID 57 mm

    Take-up package diameter

    up to 220 mm

    Package weight

    195 mm traverse length: up to 3.3 kg / 245 mm traverse length: up to 4.6 kg

    Supply package (on trolley creel)

    1 end and stand-by per position:

    – up to ø 450 mm, 250 mm tube length
    or
    – up to ø 450 mm, 150 mm tube length

    Fibre material / Fibre structure

    PA, PP, fine count PES, EL/POY

    Count range

    7...300 dtex

    Take-up levels

    4

    Layout / N° of positions min. / max.

    Double sided / min. 32 / max. 384

    Drive

    Split machine with individually controlled line shafts per side

    Electrical power (basic power supply)

    400 V, 50 cycles, 3 phases, loadable neutral, ground (adaptable to other power supplies)

    Power consumption (expected average at 175 °C and 800 m/min)

    – DTY production: 0.31 kW per position
    – DTY production incl. air covering: 0.38 kW per position

    Compressed air requirement

    Compressor with air dryer, oil filter and air tank pressure at pressure 8 bar for machine operation and process air

    Process air consumption

    depending on type of jet and texturing parameters, according to indication of jet manufacturer

    show more factsshow less facts

    Downloads

  • TG.30 A

    Auto-doffing false-twist texturing machine

    • 筒管

      或纱管,是最灵活而广泛的卷装形状的基础(如:平行管 - 无收边 / 双锥度 - 两端收边 / 单端收边 / 瓶形),这取决于卷绕装置(卷绕形式)

    • FilamentYarn长丝

      由一根或多根长纤维组成的合成纱线,整根丝连续。一根长丝的纱线称做单丝,多根长丝的纱线称做复丝

    • PP丙纶(PP)

      丙纶是一种热塑性聚合物,具有广泛应用,包括包装材料和标签材料,纺织材料(如绳,保暖内衣和地毯),文具,塑料部件,各种可回用容器,实验室设备,扩音器,汽车零部件,合成纸币。其为单体丙烯加聚制成的聚合物,坚实且通常耐很多溶剂,耐酸碱。

    • PA锦纶

      亦称尼龙。PA是化学纤维,从合成聚合物制成。锦纶非常耐撕裂,有弹性,可拉伸,少量吸湿。此外,其极为抗皱,也快干。

    • POY预取向丝

      亦称部分取向丝POY,这是化纤的主要形式。涤纶POY是涤纶切片纺丝而成的第一形态,主要用于变形。

    • DTY弹力丝

      从POY进行同时加捻和牵伸而成。DTY丝主要用于机织和针织。

    The SSM GIUDICI TG.30 A false-twist texturing machine has been especially developed for the economic production of fine Polyamide and Polypropylene yarns.

    The key features are:

    show more textshow less text

    Technical data TG.30 A

    Types of winding

    random

    Mechanical speed

    up to 1100 m/min (process speed depending on process parameters and supply yarn / package)

    Package shape

    cylindrical or biconical

    Initial traverse length

    195 or 245 mm

    Take-up tube dimensions

    Length 229 or 289 mm, ID 69 mm, rolled nose ID 57 mm

    Take-up package diameter

    up to 250 mm

    Package weight

    195 mm traverse length: up to 4 kg / 245 mm traverse length: up to 6 kg

    Supply package (on trolley creel)

    1 end and stand-by per position:

    – up to ø 400 mm, 290 mm tube length
    or
    – up to ø 440 mm, 150 mm tube length

    Fibre material / Fibre structure

    PA, PP/POY

    Count range

    11...110 dtex

    Take-up levels

    3

    Layout / N° of positions min. / max.

    Single sided / min. 12 / max. 168

    Drive

    individually controlled line shafts

    Electrical power (basic power supply)

    400 V, 50 cycles, 3 phases, loadable neutral, ground (adaptable to other power supplies)

    Power consumption

    Heating power consumption at 220 °C: 0.19 kW per position
    Motors & electronic power consumption at 800 m/min: 0.24 kW per position

    Recommendation for compressed air /
    process air requirement

    Compressor with air dryer, oil filter and air tank pressure at pressure 10 bar.
    Consumption per doffing: 0.27 m3 per each complete doff

    Process air consumption

    depending on type of jet and texturing parameters, according to indication of jet manufacturer

    Compressed air

    7 bar (machine operation including auto doffing)

    show more factsshow less facts

    Downloads

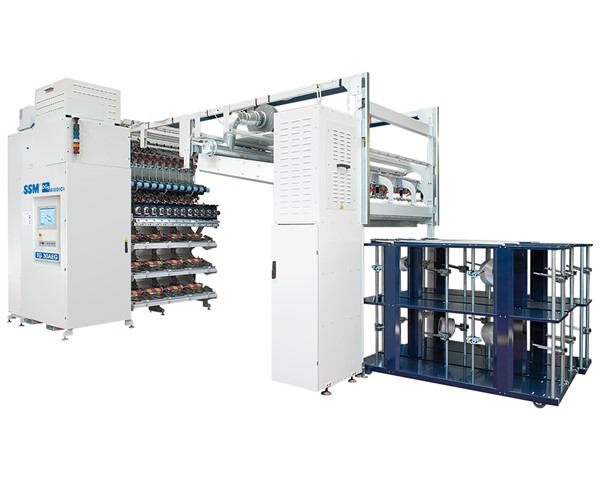

  • TG.30 AG/AEG

    Auto-doffing false-twist texturing machine

    • 筒管

      或纱管,是最灵活而广泛的卷装形状的基础(如:平行管 - 无收边 / 双锥度 - 两端收边 / 单端收边 / 瓶形),这取决于卷绕装置(卷绕形式)

    • FilamentYarn长丝

      由一根或多根长纤维组成的合成纱线,整根丝连续。一根长丝的纱线称做单丝,多根长丝的纱线称做复丝

    • PA锦纶

      亦称尼龙。PA是化学纤维,从合成聚合物制成。锦纶非常耐撕裂,有弹性,可拉伸,少量吸湿。此外,其极为抗皱,也快干。

    • POY预取向丝

      亦称部分取向丝POY,这是化纤的主要形式。涤纶POY是涤纶切片纺丝而成的第一形态,主要用于变形。

    • DTY弹力丝

      从POY进行同时加捻和牵伸而成。DTY丝主要用于机织和针织。

    • PET / PES聚酯

      由热塑性聚合物制成的合成纤维。该聚合物在其主分子链上含有酯类官能团。通常指一种叫聚对苯二甲酸乙二醇酯(PET)或聚琥珀酸酯(PES)的聚合物,熔点从103 - 106°C。

    • PP丙纶(PP)

      丙纶是一种热塑性聚合物,具有广泛应用,包括包装材料和标签材料,纺织材料(如绳,保暖内衣和地毯),文具,塑料部件,各种可回用容器,实验室设备,扩音器,汽车零部件,合成纸币。其为单体丙烯加聚制成的聚合物,坚实且通常耐很多溶剂,耐酸碱。

    • PBT聚对苯二甲酸丁二醇酯

      PBT与其它热塑性聚酯相似。与PET相比,PBT强度和刚性略低,但更具抗冲击性。其纤维具自然伸展,可用于混织成运动服(最常见的是泳衣)。

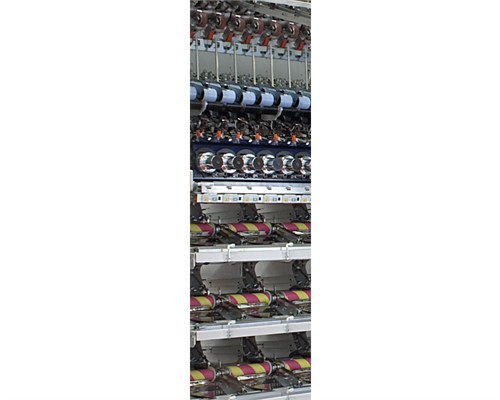

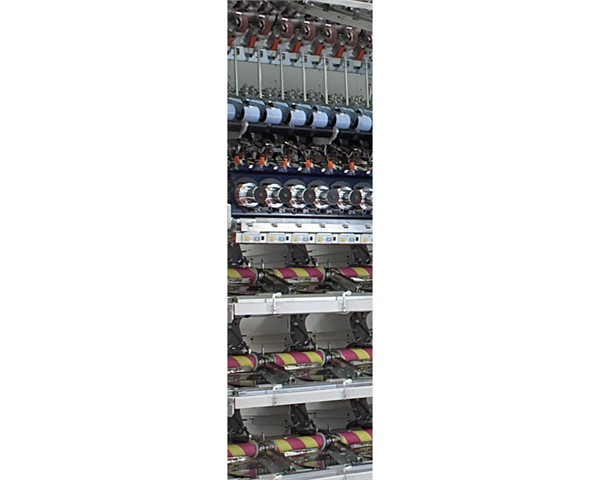

    The SSM GIUDICI TG.30 AG/AEG offers a straight, optimized yarn path through the texturing zone along with a heated godet enabling the production of heat set PES yarns.

    show more textshow less text

    Technical data TG.30 AG /AEG

    Type of winding

    random

    Mechanical speed

    up to 1100 m/min (process speed depending on process parameters and supply yarn / package)

    Package shape

    Cylindrical or biconical

    Initial traverse length

    195 or 245 mm

    Take-up tube dimensions

    Length 229 or 289 mm, ID 69 mm, rolled nose ID 57 mm

    Take-up package diameter

    up to 250 mm

    Package weight

    195 mm traverse length: up to 4 kg / 245 mm traverse length: up to 6 kg

    Supply package (on trolley creel)

    1 end and stand-by per position:

    – up to ø 400 mm, 290 mm tube length

    or

    – up to ø 440 mm, 150 mm tube length

    Fibre material / Fibre structure

    PES, PBT, PA/POY

    Count range

    30...330 dtex

    Take-up levels

    3

    Layout / N° of positions min. / max.

    Single sided / min. 12 / max. 120

    Drive

    Individually controlled line shafts and godets

    Electrical power (basic power supply)

    400 V, 50 cycles, 3 phases, loadable neutral, ground (adaptable to other power supplies)

    Power consumption

    Heating power consumption at 220 °C:

    – TG.30 AG /AEG 0.51 kW per position
    Motors & electronic power consumption at 800 m/min:
    – TG.30 AG 0.33 kW per position
    – TG.30 AEG 0.38 kW per position

    Recommendation for compressed air / process air requirement

    Compressor with air dryer, oil filter and air tank pressure at pressure 10 bar
    Consumption per doffing: 0.27 m3 per each complete doff

    Process air consumption

    depending on type of jet and texturing parameters, according to indication of jet manufacturer

    Compressed air

    7 bar (machine operation including auto doffing)

    show more factsshow less facts

    Downloads

  • TG.30 AE/AEM

    Auto-doffing false-twist texturing and air covering machine

    • 筒管

      或纱管,是最灵活而广泛的卷装形状的基础(如:平行管 - 无收边 / 双锥度 - 两端收边 / 单端收边 / 瓶形),这取决于卷绕装置(卷绕形式)

    • FilamentYarn长丝

      由一根或多根长纤维组成的合成纱线,整根丝连续。一根长丝的纱线称做单丝,多根长丝的纱线称做复丝

    • PA锦纶

      亦称尼龙。PA是化学纤维,从合成聚合物制成。锦纶非常耐撕裂,有弹性,可拉伸,少量吸湿。此外,其极为抗皱,也快干。

    • POY预取向丝

      亦称部分取向丝POY,这是化纤的主要形式。涤纶POY是涤纶切片纺丝而成的第一形态,主要用于变形。

    • PP丙纶(PP)

      丙纶是一种热塑性聚合物,具有广泛应用,包括包装材料和标签材料,纺织材料(如绳,保暖内衣和地毯),文具,塑料部件,各种可回用容器,实验室设备,扩音器,汽车零部件,合成纸币。其为单体丙烯加聚制成的聚合物,坚实且通常耐很多溶剂,耐酸碱。

    • EL氨纶

      氨纶或斯潘德克斯弹性纤维是一种聚氨酯 - 聚脲共聚物。该合成纤维可拉伸长度四到七倍,当张力松驰后又回复至原始长度。应用在需要高度永久弹性的所有领域:裤袜,内衣,运动服,并用于机织物和针织物。

    • DTY弹力丝

      从POY进行同时加捻和牵伸而成。DTY丝主要用于机织和针织。

    The SSM GIUDICI TG.30 AE/AEM is especially designed for false twist texturing of fine and medium count PA and PP continuous filament yarns. In combination with the integrated elastomer unrolling device air covered yarns can be directly produced in one process step.

    The main features are:

    show more textshow less text

    Technical data TG.30 AE /AEM

    Type of winding

    random

    Mechanical speed

    up to 1100 m/min (process speed depending on process parameters and supply yarn / package)

    Package shape

    Cylindrical or biconical

    Initial traverse length

    195 or 245 mm

    Take-up package diameter

    up to 250 mm

    Take-up tube dimensions

    Length 229 or 289 mm, ID 69 mm, rolled nose ID 57 mm

    Package weight

    195 mm traverse length: up to 4 kg / 245 mm traverse length: up to 6 kg

    Supply package (on trolley creel)

    up to 2 ends and stand-by per position:

    – up to ø 400 mm, 290 mm tube length
    or
    – up to ø 450 mm, 150 mm tube length

    Fibre material / Fibre structure

    PA, PP, EL / POY

    Count range

    11...110 dtex

    Take-up levels

    3

    Layout / N° of positions min. / max.

    Single sided / min. 12 / max. 168

    Drive

    Individually controlled line shafts

    Electrical power (basic power supply)

    400 V, 50 cycles, 3 phases, loadable neutral, ground (adaptable to other power supplies)

    Power consumption

    Heating power consumption at 220 °C: 0.19 kW per position
    Motors & electronic power consumption at 800 m/min: 0.30 kW per position

    Recommendation for compressed air / process air requirement

    Compressor with air dryer, oil filter and air tank pressure at pressure 10 bar
    Consumption per doffing: 0.27 m3 per each complete doff

    Process air consumption

    depending on type of jet and texturing parameters, according to indication of jet manufacturer

    Compressed air

    7 bar (machine operation including auto doffing)

    show more factsshow less facts

    Downloads

  • TG.30 2BA/2BAG

    High performance auto-doffing double density false-twist texturing machine

    • 筒管

      或纱管,是最灵活而广泛的卷装形状的基础(如:平行管 - 无收边 / 双锥度 - 两端收边 / 单端收边 / 瓶形),这取决于卷绕装置(卷绕形式)

    • FilamentYarn长丝

      由一根或多根长纤维组成的合成纱线,整根丝连续。一根长丝的纱线称做单丝,多根长丝的纱线称做复丝

    • PA锦纶

      亦称尼龙。PA是化学纤维,从合成聚合物制成。锦纶非常耐撕裂,有弹性,可拉伸,少量吸湿。此外,其极为抗皱,也快干。

    • POY预取向丝

      亦称部分取向丝POY,这是化纤的主要形式。涤纶POY是涤纶切片纺丝而成的第一形态,主要用于变形。

    • PP丙纶(PP)

      丙纶是一种热塑性聚合物,具有广泛应用,包括包装材料和标签材料,纺织材料(如绳,保暖内衣和地毯),文具,塑料部件,各种可回用容器,实验室设备,扩音器,汽车零部件,合成纸币。其为单体丙烯加聚制成的聚合物,坚实且通常耐很多溶剂,耐酸碱。

    • PET / PES聚酯

      由热塑性聚合物制成的合成纤维。该聚合物在其主分子链上含有酯类官能团。通常指一种叫聚对苯二甲酸乙二醇酯(PET)或聚琥珀酸酯(PES)的聚合物,熔点从103 - 106°C。

    • DTY弹力丝

      从POY进行同时加捻和牵伸而成。DTY丝主要用于机织和针织。

    • PBT聚对苯二甲酸丁二醇酯

      PBT与其它热塑性聚酯相似。与PET相比,PBT强度和刚性略低,但更具抗冲击性。其纤维具自然伸展,可用于混织成运动服(最常见的是泳衣)。

    The SSM GIUDICI TG.30 2BA/2BAG double density texturing machines has been developed for the production of twist-free/S+Z 2-ply draw textured yarns. The short and straight yarn path in the texturing zone is a key feature of the TG.30 2BA/2BAG which allows the false-twist texturing of high quality fine and medium count Polyamide and Polypropylene yarns. Further main aspects are:

    show more textshow less text

    Technical data TG.30 2BA/2BAG

    Type of winding

    random

    Mechanical speed

    up to 1100 m/min (process speed depending on process parameters and supply yarn / package)

    Package shape

    Cylindrical or biconical

    Initial traverse length

    195 or 245 mm

    Take-up tube dimensions

    Length 229 or 289 mm, ID 69 mm, rolled nose ID 57 mm

    Take-up package diameter

    up to 250 mm

    Package weight

    195 mm traverse length: up to 4 kg / 245 mm traverse length: up to 6 kg

    Supply package (on trolley creel)

    up to 2 ends and stand-by per position:

    – up to ø 400 mm, 290 mm tube length
    or
    – up to ø 450 mm, 150 mm tube length

    Fibre material / Fibre structure

    PA, PP, PBT (TG.30 2BA), PES PA, PP, PBT (TG.30 2BAG) / POY

    Count range

    TG.30 2BA: 22...220 dtex (two ply) / TG.30 2BAG: 30...660 dtex (two ply)

    Take-up levels

    2

    Layout / N° of positions min. / max.

    Single sided / min. 8 / max. 80

    Drive

    Individually controlled line shafts (and godets; TG.30 2BAG)

    Electrical power (basic power supply)

    400 V, 50 cycles, 3 phases, loadable neutral, ground (adaptable to other power supplies)

    Power consumption

    Heating power consumption at 220 °C:

    – TG.30 2BA 0.19 kW per position
    – TG.30 2BAG 0.51 kW per position
    Motors & electronic power consumption at 800 m/min:
    – TG.30 2BA 0.28 kW per position
    – TG.30 2BAG 0.32 kW per position

    Recommendation for compressed air / process air requirement

    Compressor with air dryer, oil filter and air tank pressure at pressure 10 bar
    Consumption per doffing: 0.27 m3 per each complete doff

    Process air consumption

    depending on type of jet and texturing parameters, according to indication of jet manufacturer

    Compressed air

    7 bar (machine operation including auto doffing)

    show more factsshow less facts

    Downloads

  • RG.12 DTB

    Coarse count auto-doffing false-twist texturing machine

    • 筒管

      或纱管,是最灵活而广泛的卷装形状的基础(如:平行管 - 无收边 / 双锥度 - 两端收边 / 单端收边 / 瓶形),这取决于卷绕装置(卷绕形式)

    • FilamentYarn长丝

      由一根或多根长纤维组成的合成纱线,整根丝连续。一根长丝的纱线称做单丝,多根长丝的纱线称做复丝

    • PET / PES聚酯

      由热塑性聚合物制成的合成纤维。该聚合物在其主分子链上含有酯类官能团。通常指一种叫聚对苯二甲酸乙二醇酯(PET)或聚琥珀酸酯(PES)的聚合物,熔点从103 - 106°C。

    • PP丙纶(PP)

      丙纶是一种热塑性聚合物,具有广泛应用,包括包装材料和标签材料,纺织材料(如绳,保暖内衣和地毯),文具,塑料部件,各种可回用容器,实验室设备,扩音器,汽车零部件,合成纸币。其为单体丙烯加聚制成的聚合物,坚实且通常耐很多溶剂,耐酸碱。

    • PA锦纶

      亦称尼龙。PA是化学纤维,从合成聚合物制成。锦纶非常耐撕裂,有弹性,可拉伸,少量吸湿。此外,其极为抗皱,也快干。

    • POY预取向丝

      亦称部分取向丝POY,这是化纤的主要形式。涤纶POY是涤纶切片纺丝而成的第一形态,主要用于变形。

    • DTY弹力丝

      从POY进行同时加捻和牵伸而成。DTY丝主要用于机织和针织。

    • PBT聚对苯二甲酸丁二醇酯

      PBT与其它热塑性聚酯相似。与PET相比,PBT强度和刚性略低,但更具抗冲击性。其纤维具自然伸展,可用于混织成运动服(最常见的是泳衣)。

    • EL氨纶

      氨纶或斯潘德克斯弹性纤维是一种聚氨酯 - 聚脲共聚物。该合成纤维可拉伸长度四到七倍,当张力松驰后又回复至原始长度。应用在需要高度永久弹性的所有领域:裤袜,内衣,运动服,并用于机织物和针织物。

    Developed for the production of coarse counts (up to 1320 dtex) the SSM GIUDICI RG.12 DTB offers the high machine efficiency of double density executions along with the flexibility of individual drives. The ability to integrate 2 extra yarn paths per position additionally enhances the count range up to 1320 dtex. The basic modular machine concept enables the machine to be upgraded to changing market demands. The main elements of the RG.12 DTB are:

    show more textshow less text

    Technical data RG.12 DTB

    Type of winding

    random

    Mechanical speed

    up to 1100 m/min (process speed depending on process parameters and supply yarn / package)

    Package shape

    Cylindrical or biconical

    Initial traverse length

    195 or 245 mm

    Take-up tube dimensions

    Length 229 or 289 mm, ID 69 mm, rolled nose ID 57 mm

    Take-up package diameter

    up to 250 mm

    Package weight

    195 mm traverse length: up to 4 kg / 245 mm traverse length: up to 6 kg

    Supply package (on trolley creel)

    up to 2 ends and stand-by per position:

    – up to ø 400 mm, 290 mm tube length
    or
    – up to ø 450 mm, 150 mm tube length

    Fibre material / Fibre structure

    PES, PA, PP, PBT / POY

    Count range

    2-ply: 30...660 dtex / 4-ply: 1320 dtex

    Take-up levels

    1

    Layout / N° of positions min. / max.

    Single sided / min. 4 / max. 60

    Drive

    Individually controlled single drives

    Electrical power (basic power supply)

    400 V, 50 cycles, 3 phases, loadable neutral, ground (adaptable to other power supplies)

    Power consumption

    Heating power consumption at 220 °C: 0.78 kW per position
    Motors & electronic power consumption at 800 m/min: 0.54 kW per position

    Recommendation for compressed air / process air requirement

    Compressor with air dryer, oil filter and air tank pressure at pressure 10 bar
    Consumption per doffing: 0.27 m3 per each complete doff

    Process air consumption

    depending on type of jet and texturing parameters, according to indication of jet manufacturer

    Compressed air

    7 bar (machine operation including auto doffing)

    show more factsshow less facts

    Downloads
